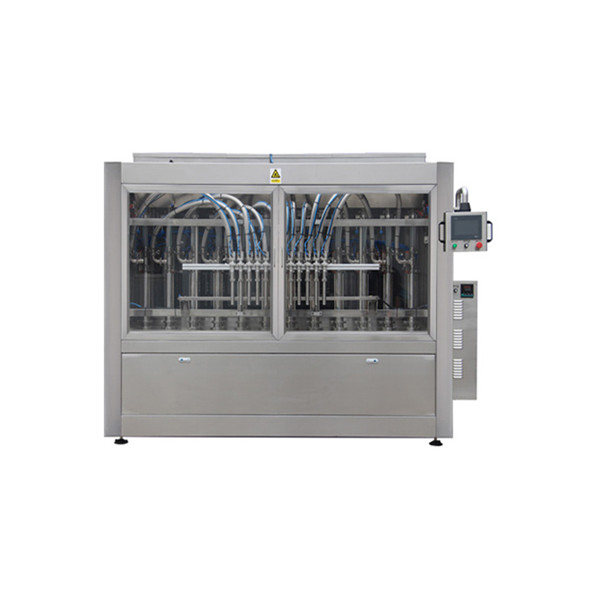

This type machine is used for 4kg -30 kg liquid filling . It can finish a series of operations automatically, such as bottle inlet, weight filling, and bottle outlet. Especially for SL, edible oil lubrication. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
1. This machine adopts PLC, touch screen control panel, convenient to adjust.
2. Each filling head has the weigh and feedback system. Each filling head can be regulated.
3. Photoelectric sensor, approximate switch and other electric elements are the international famous brand. No container no filling. The main host can trigger the alarm if there is any container blocked.
4. Submerged filling makes it possible to reduce form. It is suitable for various kinds of filling products.
5. The whole machine meets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapts to various kinds of working places.
|Turi||Suitable bottles||Imkoniyatlar||Mashina hajmi||Quvvat||Quvvatlantirish manbai||Precise|
(can be customized)
|8 Heads||30kg:600BPH||4500*1700*2300mm||2,5 kVt|
With pressure protection system, if the bottle is misaligned, the filling nozzle will rise after falling to a certain height
High quality filling valve, high filling accuracy, quick action
Turli xil quvurlarni tanlash:
Buyurtmachining turli xil tanloviga ko'ra, mijozni kutib olish uchun turli xil quvurlar materiallari bilan jihozlangan bo'lishi mumkin
variety of different liquid safety filling.
The machine adopts linear bottle feeding, PLC program control, double cylinder bottle positioning, can clear up and drop the cap automatically. Single-head machine in the double action lifting cylinder to grasp the cover firstly, then screw cap. The screw cap adopts the air expansion type catch cap, and is equipped with clutch device, the screw cap will not damage the bottle cap, the machine is suitable for the screw cap of the barrel with large diameter.
|Quvvat||2.5kw AC220/380v;50/60 HZ|
Servo motor is used to control the torque of the rotary capping head, It won't damage the bottle and the caps.
The action of grasping the cap is completed by the air cylinder.
According to the special requirements of customers, the cap lifting machine can be replaced with a cap unscrambler and conveyor belt. Much more easier to adjust when change the caps and bottles.
Belt type conveyor for the caps,the speed and stability of cap conveyor are increased, and won't occurs caps missing
On the belt conveyor, the no-aluminum foil cap remove device can be installed to remove the cover without aluminum foil.
Automatic Double-side Labeling Machine:
This machine id widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other industries. It is single
and double side labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer
(PLC) easy operating.
1. Adopt mature PLC control technology, make the machine stable and high-speed. Can be suitable or square /oval flat bottles at the same time.
2. Adopt touch screen control system, simple, practical and efficient operation.
Adopt high quality wheel to leave some space between the bottles, so as to ensure that the labels will not be missed. The rotary speed of the sponge wheel can be adjusted to adjust space between the two bottles.
The parts of the machine that store labels and collect label paper are designed to be adjustable to accommodate a wide variety of labels.
Adopt photoelectric equipment imported from Germany, and high quality servo motor, the labeling accuracy is greatly improved.
1. O'rnatish, nosozliklarni tuzatish
After equipment reached the workshop of cust
omer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
Bizning kompaniyamiz mijozlarga texnologiya bo'yicha mashg'ulotlarni taklif qiladi. O'qitishning tarkibi - bu uskunalarni tuzilishi va ularga xizmat ko'rsatish, uskunalarni boshqarish va ulardan foydalanish. Tajribali texnik rahbarlik qiladi va o'quv rejasini tuzadi. Treningdan so'ng, xaridorning texnik mutaxassisi operatsiya va texnik xizmat ko'rsatishni o'rganishi, jarayonni sozlashi va turli xil nosozliklarni davolashi mumkin edi.
3. Sifat kafolati
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. Sotishdan keyin
Tekshiruvdan so'ng, biz 12 oy sifat kafolati sifatida, bepul qismlarni kiyish va boshqa qismlarni eng past narxda taklif qilamiz. Sifatni kafolatlashda xaridorning texnik mutaxassisi sotuvchining talabiga binoan uskunani ishlatishi va xizmat qilishi, ba'zi bir nosozliklarni tuzatishi kerak. Agar siz muammolarni hal qila olmasangiz, biz sizga telefon orqali yo'l-yo'riq beramiz; agar muammolar hanuzgacha hal etilmasa, muammolaringizni hal qilish uchun fabrikangizga texnik xodimni tayinlaymiz. Texnik tadbirlarning narxi siz texnik xodimning ishlov berish usulini ko'rishingiz mumkin.
Sifat kafolati berilgandan so'ng, biz texnologiya va sotishdan keyingi xizmatni taklif etamiz. Qulay narxlarda ehtiyot qismlar va boshqa ehtiyot qismlarni kiyishni taklif eting; Sifat kafolati berilgandan so'ng, xaridorning texnik mutaxassisi sotuvchining talabiga binoan uskunani ishlatishi va xizmat qilishi, ba'zi bir nosozliklarni tuzatishi kerak. Agar siz muammolarni hal qila olmasangiz, biz sizga telefon orqali yo'l-yo'riq beramiz; agar muammolar hanuzgacha hal etilmasa, muammolaringizni hal qilish uchun fabrikangizga texnik xodimni tayinlaymiz.
